Customize Hose Solutions

Smart Fluid Handling

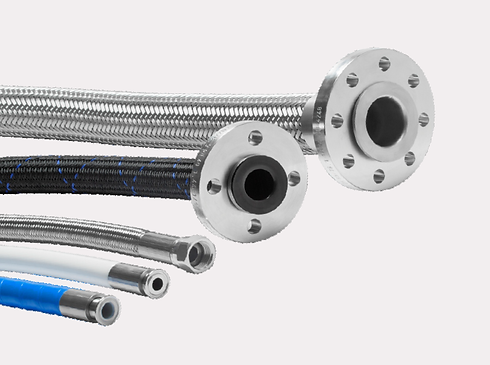

CRIMPED HOSES & OTHER FLUID COMPONENTS

Highlights :

  • Shah Brothers offers a variety of hoses in different materials to meet virtually any sanitary hose application

  • Our hose and hose assemblies always adhere to international quality standards

  • Leak and Pressure Tested

  • 4 Ply, Wire reinforced Mandrel wrapped for higher pressures, rated for full vacuum, crush or kink resistant, durable & heavy-duty

  • Suitable for Fod & Beverages, Pharma & Biotech, Chemical & Process Fluids, Automotive Industry

SILICON


FEATURES

Recommended cleaning :
CIP, SIP, Autoclave
Size Range :
1/8" ID to 1-1/4" ID
Sterilization :
Up to +135°C for max.
30 min

SPECIFICATIONS

Operational Temperature & Pressure

-60°C to +180°C

WP Up to 15 bar

Tube :
Platinum-cured silicone
Reinforcement :
Piles of synthetic braiding
Cover :
Platinum-cured silicone
rubber

APPLICATIONS

  • Platinum-cured silicone
    hose, designed for
    conveying high-purity
    products.

  • Normally used in the
    pharmaceutical, biotech,
    cosmetic and food industry.
    Delivery hose, not
    recommended for suction.

SILICON/HD


FEATURES

Recommended cleaning :
CIP, SIP, Autoclave
Size Range :
3/8" to 4" ID
Sterilization :
Up to +135°C at 3.5 bar for
max 90 min.

SPECIFICATIONS

Operational Temperature & Pressure

-60°C to +200°C

WP Up to 10 bar

Tube :
Platinum cured silicone
Reinforcement :
Stainless helix wire
reinforcement with plies of
synthetic braiding
Cover :
Platinum cured silicon
rubber

APPLICATIONS

  • Silicone hose for suction &
    delivery of high purity products, foodstuff & fluids withalcohol content up to 96%.

  • Used in food, pharma and
    cosmetic industries.

  • Resistant to suction.

SILICON TUBING


FEATURES

Recommended cleaning :
Autoclave
Size Range :
1/16" to 1" ID
Sterilization :
Autoclave/Gamma

SPECIFICATIONS

Operational Temperature & Pressure

-73°C 204°C

Up to 2.3 bar

Tube :
Platinum cured silicone
Reinforcement :
NA
Cover :
NA

APPLICATIONS

  • Application includes
    pharmaceutical, biomedical,
    biotech and food & beverage handling for
    high purity product transfer

PTFE


FEATURES

Recommended cleaning :
CIP, SIP
Size Range :
1/2" to 2" ID
Sterilization :
Up to +135°C for max.
30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-70°C to +200°C

WP Up to 40 bar

Tube :
Inner smooth PTFE
Reinforcement :
Helix wire reinforcement
with SS braiding
Cover :
NA

APPLICATIONS

  • Specifically designed for
    high purity and high
    flexibility applications.

  • Used in Pharmaceutical,
    Biotech, Food and cosmetic
    industry.

  • Exceptionally good vacuum
    and kink resistance
    properties for extreme
    performance.

PTFE/SIL/PTFE/EPDM


FEATURES

Recommended cleaning :
CIP, SIP, Autoclave
Size Range :
1/2 to 2" ID
Sterilization :
Upto +135°C for max
30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-70°C to +260°C

WP Up to 40 bar

Tube :
Inner smooth PTFE
Reinforcement :
Helix wire reinforcement
with SS braiding
Cover :
Outer smooth silicone/
EPDM cover

APPLICATIONS

  • Specifically designed for
    high purity and high
    flexibility applications.

  • Used in Pharmaceutical,
    Biotech, Food and cosmetic
    industry.

  • Exceptionally good vacuum
    and kink resistance
    properties for extreme
    performance.

BUTYL


FEATURES

Recommended cleaning :
CIP, SIP
Size Range :
3/4" to 4" ID
Sterilization :
Up to +130°C for max
30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-40°C to +120°C
WP Up to 10 bar

Tube :
Smooth Butyl rubber
Reinforcement :
Piles of synthetic cord with
embedded steel helix wire.
Cover :
EPDM based cover

APPLICATIONS

  • Food quality hose designed for conveying non-oily beverage & food applications including potable water, beer, wine juices and soft drinks.

  • Suction and delivery hose.

BUTYL/HD


FEATURES

Recommended cleaning :
CIP, SIP
Size Range :
3/4" to 4"
Sterilization :
Upto +130°C for max
30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-40°C to +120°C
WP Up to 15 bar

Tube :
Smooth Butyl rubber
Reinforcement :
Piles of synthetic cord with
embedded steel helix wire.
Cover :
CR based rubber

APPLICATIONS

  • Special reinforced structure
    makes the hose strong &
    resistant for heavy duty
    applications.

  • Suitable for conveying
    raw pasteurized & organic
    beer, wine, juices and soft
    drinks.

  • Suction and delivery hose.

NITRILE


FEATURES

Recommended cleaning :
CIP, SIP, Autoclave
Size Range :
3/4" to 4" ID
Sterilization :
Upto +130°C for max
30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-20°C to +90°C
WP Up to 10 bar

Tube :
Smooth Nitrile rubber
Reinforcement :
Steel helical wire with piles
of synthetic cord
Cover :
CR based rubber

APPLICATIONS

  • Specifically designed to
    convey milk & milk
    products and fatty food
    stuff in general.

  • Normally used in diaries,
    edible oil mills and food
    processing industries.

  • Designed for suction and
    discharge applications.

EPDM


FEATURES

Recommended cleaning :
CIP, SIP
Size Range :
1/2" to 4"
Sterilization :
Upto +150°C for max
30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-40°C to +120°C
WP Up to 10 bar

Tube :
Smooth EPDM rubber core
Reinforcement :
Steel helical wire with plies
of synthetic cord
Cover :
Outer synthetic rubber

APPLICATIONS

  • Beverage hose suitable for
    conveying liquid food stuffs
    such as wine, beer, tomato
    juice, fruit juice, water &
    soft drinks.

  • High resistance to chemical
    cleaning and disinfection.

  • Designed for suction and
    discharge applications.

PFA /SIL


FEATURES

Recommended cleaning :
CIP, SIP, Autoclave
Size Range :
1/2" to 4" ID
Sterilization :
Up to +135°C at
3.5 bar for max. 30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-30°C to +150°C

WP Up to 10 bar

Tube :
Inner smooth PFA
Reinforcement :
Helical wire reinforcement
with plies of synthetic cord
Cover :
Smooth platinum cured
silicone cover

APPLICATIONS

  • Multipurpose hose designed to ensure utmost purity during transport of
    pharmaceutical, cosmetic,
    food and chemical products

  • Specifically engineered to
    combine the technical benefits of a perfluoro polymer with the elasticity and heat resistance of silicone.

PFA /HD


FEATURES

Recommended cleaning :
CIP, SIP
Size Range :
3/4" to 2" ID
Sterilization :
Up to +135°C at
3.5 bar for max. 30 min.

SPECIFICATIONS

Operational Temperature & Pressure

-40°C to +150°C

WP Up to 10 bar

Tube :
Inner smooth PFA
Reinforcement :
Synthetic cord with
embedded steel helix wire
Copper wires with multi-ply
aramid fiber insulation
Cover :
Silicone rubber

APPLICATIONS

  • Excellent for transport of
    fluids at low temperature which limits the  condensation

  • Designed to convey various media in cosmetic, food, pharma & biotech industry

POLYMER


FEATURES

Recommended cleaning :
CIP with water upto 100°C
(without Pressure) mixed
with a normal mild
cleaning detergent
Size Range : 1" to 4" ID
Sterilization : NA

SPECIFICATIONS

Operational Temperature & Pressure

-10°C to +85°C

WP Up to 6 bar

Tube :
Smooth Technopolymer
Reinforcement :
Helical wire reinforcement
with plies of synthetic
braiding
Cover :
Technopolymer cover

APPLICATIONS

  • Suction and delivery hose,
    specifically designed for
    conveying air mixed with
    powders.

  • Normally used in the
    pharmaceutical and food
    industry.

PVC HOSE


FEATURES

Recommended cleaning :
CIP with water up to 60°C
mixed with normal mild
cleaning detergent
Size Range :
1/8" to 2"
Sterilization : NA

SPECIFICATIONS

Operational Temperature & Pressure

Up to 79°C

WP Up to 32 bar

Tube :
PVC
Reinforcement :
Polyester mesh braiding
Cover :
PVC

APPLICATIONS

  • Good choice for drinking
    water & food processing
    application.

  • Typical application include
    Transfer lines, Pneumatic
    circuitry, Cell culture and
    general laboratory
    applications.

  • Suitable for dilute acids
    and alkalis

POLY URETHANE


FEATURES

Recommended cleaning :
CIP with water up to 60°C
mixed with normal mild
cleaning detergent
Size Range :
1/4" to 2" ID
Sterilization : NA

SPECIFICATIONS

Operational Temperature & Pressure

-60°C to 79°C

WP up to 8 bar

Tube :
Ether based polyurethane
Reinforcement :
Polyester mesh braiding
Cover :
NA

APPLICATIONS

  • Well suited for alcoholic
    beverage applications and
    potable water.

  • Other applications include
    Abrasive product transfer,
    Cement slurries, Oil and fuel lines, Petroleum products transfer etc.

  • Resistant to attack from
    moisture and fungi, UV
    rays

PVC TUBING


FEATURES

Recommended cleaning :
CIP with water up to 60°C
mixed with normal mild
cleaning detergent
Size Range :
1/16 to 2" ID
Sterilization : NA

SPECIFICATIONS

Operational Temperature & Pressure

Up to 79°C

WP up to 6 bar

Tube :
PVC
Reinforcement :
NA
Cover :
NA

APPLICATIONS

  • Ideal tubing solution for
    - Brewing and other
    beverage applications.
    - Transfer of fluids, gases
    and air in the medical
    device and health care
    market.

POLY URETHANE TUBING


FEATURES

Recommended cleaning :
CIP with water up to 60°C
mixed with normal mild
cleaning detergent
Size Range :
1/16" to 1" ID
Sterilization : NA

SPECIFICATIONS

Operational Temperature & Pressure

-60°C to 79°C

Max up to 9.6 bar

Tube :
Ether based Polyurethane
Reinforcement :
NA
Cover :
NA

APPLICATIONS

  • Well suited for alcoholic
    beverage applications and
    potable water.

  • Other applications include
    metering pumps, oxygen
    and other gas lines, small
    motor fuel lines etc.

  • Resistant to attack from
    moisture and fungi, UV
    rays and more resistant to
    pressure and vacuum than
    PVC

OTHER HOSE TYPES


- CONVOLUTED

- ANTI STATIC

- FLARED

Customized Hose Solutions Offered


FITTINGS & CLAMPS


GASKETS


QUICK CONNECT/
DISCONNECT
COUPLINGS


FILTERS & HOUSING
